Flange fence post has a flat base plate welded to the bottom, allowing it to be bolted onto hard surfaces such as concrete slabs, decks, or walls instead of being set in the ground. It is commonly used for installing fences on pavement or driveways, securing handrails or barriers on patios and decks, and setting up fence lines on rooftops or balconies.
Specifications
- Cross-Section Square Types: 40×40 mm, 50×50 mm, 60×60 mm, 80×80 mm, 100×100 mm
- Cross-Section Round Types: Ø42 mm, Ø48 mm, Ø60 mm, Ø76 mm, Ø89 mm, Ø114 mm
- Wall Thickness: 1.2 mm – 5.0 mm
- Height / Length: 1.0 m – 3.0 m (custom sizes available)
- Flange Plate Size: 100×100 mm, 120×120 mm, 150×150 mm, 200×200 mm
- Flange Plate Thickness: 3 mm – 10 mm
- Bolt Hole Diameter: 10 mm – 20 mm
- Bolt Hole Quantity: 2–4 per plate
- Material: Q235 / Q195 carbon steel
- Surface Finish: Hot-dip galvanized, electro-galvanized, or powder coated
Custom Sizes
- Flange Fence Post 40×40 mm Galvanized Square Steel Post with Base Plate
- Flange Fence Post 50×50 mm Powder Coated Square Steel for Concrete Mounting
- Flange Fence Post Ø48 mm Round Steel Post with 120×120 mm Base Plate
- Flange Fence Post 60×60 mm Hot-Dip Galvanized Square Post with Bolt Holes
- Flange Fence Post Ø60 mm × 2.5 mm Round Steel with 150×150 mm Base Plate
- Flange Fence Post 80×80 mm × 3.0 mm Square Steel Post for Deck and Patio
- Flange Fence Post Ø76 mm Galvanized Round Post with 200×200 mm Flange Plate
- Flange Fence Post 100×100 mm Square Steel Post with 4 Bolt Holes for Driveways
- Flange Fence Post Ø89 mm Powder Coated Round Steel for Balcony Fence Systems
- Flange Fence Post 114 mm × 4.0 mm Round Steel with 10 mm Bolt Holes
Flange Fence Post vs In-Ground Fence Post
Flange Fence Post
- Installation: Bolted directly onto hard surfaces using a welded base plate.
- Dimensions: Square 40×40–100×100 mm, Round Ø42–Ø114 mm, flange plate 100×100–200×200 mm.
- Best Use: Concrete slabs, pavements, rooftops, decks, and areas where digging is not possible.
- Advantages: Quick installation, removable, no excavation or concrete required.
- Applications: Driveways, patios, rooftops, balconies, urban fencing projects.
In-Ground Fence Post
- Installation: Set into the ground with concrete or direct burial.
- Dimensions: Square 40×40–150×150 mm, Round Ø32–Ø168 mm, length 1.5–4.0 m.
- Best Use: Soil, grassland, fields, and open areas where posts can be buried.
- Advantages: Stronger stability, better resistance against lateral forces, long-term durability.
- Applications: Agricultural fences, perimeter security fences, sports fields, industrial sites.
Product Display

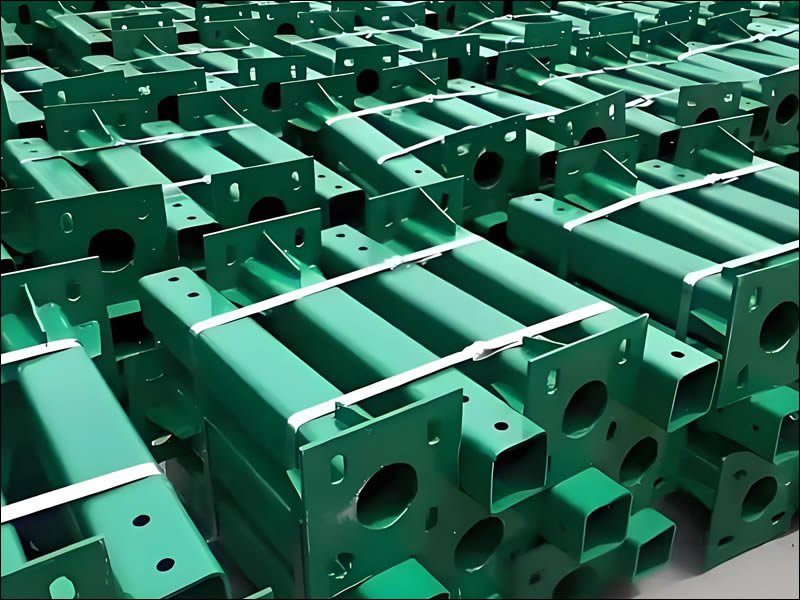

Flange Fence Post in square 40×40–100×100 mm with 50mm–120 mm base plates, galvanized or powder coated for concrete mounting.

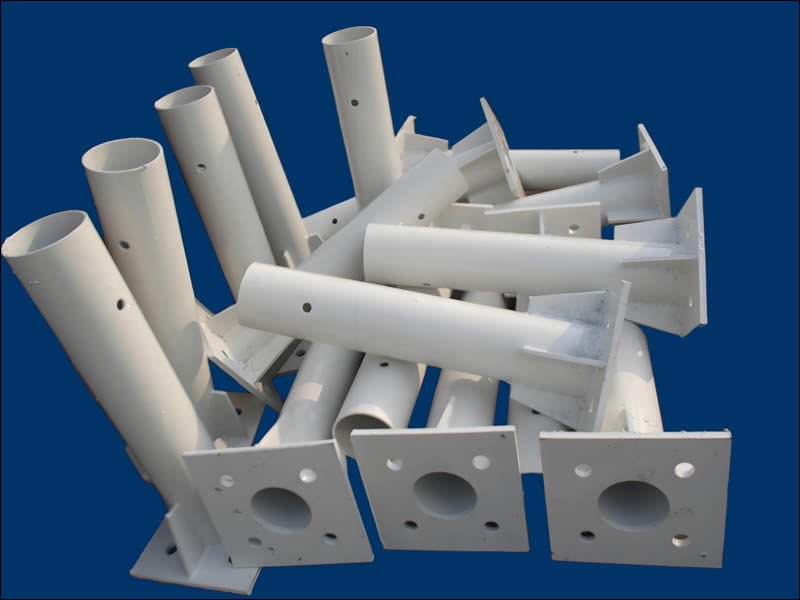

Powder coated Flange Fence Posts with round options, 1.0–3.0 m length, 30–100 mm flange plate, for concrete, decks, and patios.

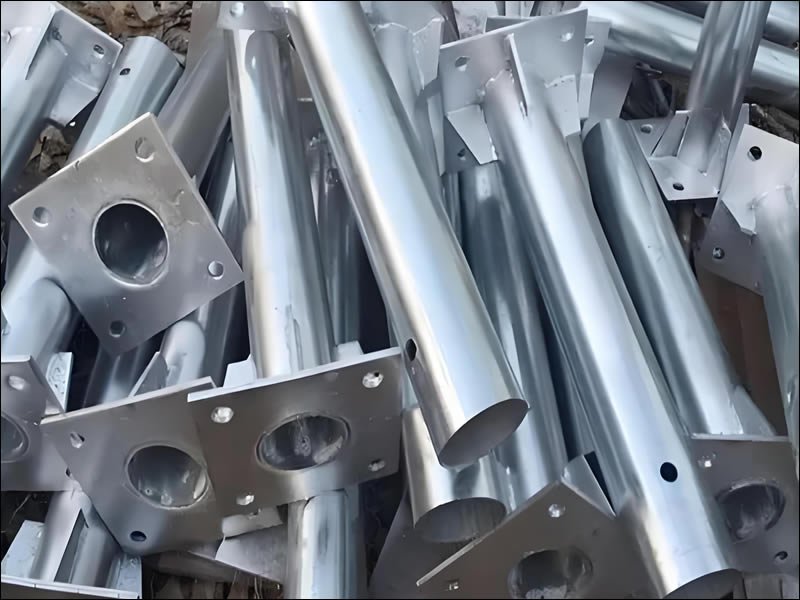

Flange Fence Post with base plate for secure mounting on slabs, rooftops, and driveways.40×40–100×100 mm and Ø42–Ø114 mm sizes.
