Anderil Steel Fence Posts Co., Ltd. supplies a range of welded mesh panels combined with Y steel fence posts, designed for security enclosures, property boundaries, and industrial site protection. The company provides customized fence solutions based on specific project requirements, including panel dimensions, wire diameter, mesh opening size, and post height. The welded mesh panels can be configured for different levels of security, and the Y steel posts are compatible with additional security features such as barbed wire or razor wire extensions. Customers can specify material type, surface coating, and installation method to meet environmental conditions and structural requirements.
Black Bitumen Coated Y Posts
Black Bitumen Coated Y Posts are widely used for agricultural fencing, livestock enclosures, security barriers, and roadside fencing. The posts are manufactured from high-quality steel and coated with a protective black bitumen layer to resist corrosion and extend service life. Standard pre-punched holes allow quick attachment of barbed wire, plain wire, mesh panels, or electric fencing. These posts are easy to install with a manual or hydraulic post driver, ensuring stable ground anchorage.
- Available Lengths: Common lengths range from 1650mm to 2400mm. The 2150mm size is widely used for general fencing, while 1800mm, 2100mm, 2300mm, and 2400mm suit different fence height needs.
- Weight: Weights range from 1.8kg to 3.2kg per post. Longer posts, such as the 2400mm at 3.2kg, are used for high-tensile and security fencing.
- Packaging: Y posts are packed in bundles of 40 pieces, with several bundles per pallet for bulk supply and easy transport.
- Coating and Durability: The black bitumen coating, 50μm to 100μm thick, protects against rust, soil moisture, and outdoor exposure.
- Cross-Section and Holes: Cross-sections measure 35mm to 50mm wide. Posts include pre-punched holes, 5mm to 12mm in diameter, spaced for quick wire or mesh attachment.
- Applications and Installation: Suitable for barbed wire, plain wire, chain-link mesh, and electric fencing, these posts are used in agricultural, livestock, and security fencing and can be installed with standard post drivers.
| Length (mm) | Approx. Weight (kg/post) | Cross-Section Width (mm) | Bundle Packing |
|---|---|---|---|
| 1650 mm | 1.8 kg | 35 mm | 40 pcs/bundle |
| 1800 mm | 2.0 kg | 35 mm | 40 pcs/bundle |
| 2000 mm | 2.3 kg | 38 mm | 40 pcs/bundle |
| 2100 mm | 2.5 kg | 38 mm | 40 pcs/bundle |
| 2150 mm | 2.6 kg | 38 mm | 40 pcs/bundle |
| 2300 mm | 2.8 kg | 40 mm | 40 pcs/bundle |
| 2400 mm | 3.2 kg | 40 mm | 40 pcs/bundle |
| 1650 mm Heavy | 2.1 kg | 50 mm | 40 pcs/bundle |
| 1800 mm Heavy | 2.4 kg | 50 mm | 40 pcs/bundle |
| 2400 mm Heavy | 3.5 kg | 50 mm | 40 pcs/bundle |

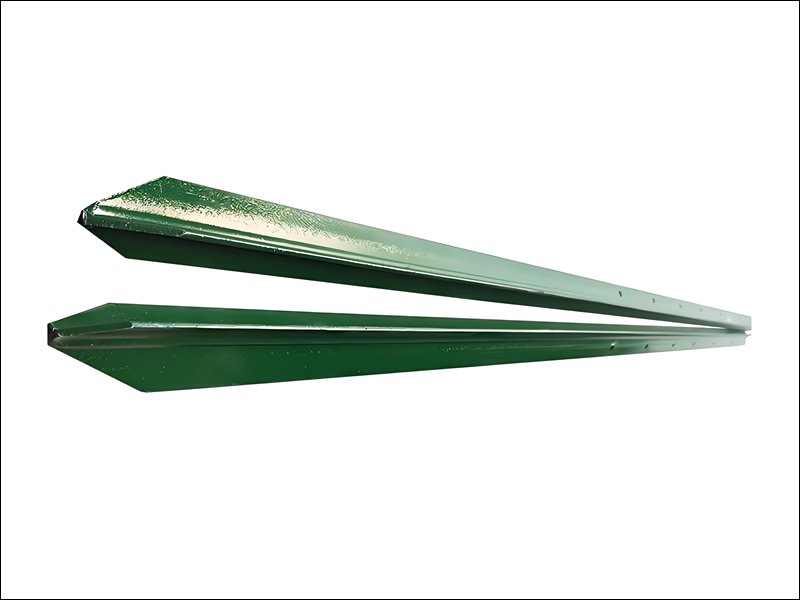

1.8m Galvanised Y Post Hot-Dipped for Farm and Security Fencing
1.8m galvanised Y post is a standard choice for agricultural, livestock, and security fencing. It is designed for durability and ease of installation, compatible with barbed wire, plain wire, and mesh fencing systems.
Specifications
- Available Lengths: 1.65m, 1.8m, 2.1m, 2.15m, 2.3m, 2.4m
- Weight Per Post: 2.0kg – 2.4kg (depending on steel thickness and cross-section)
- Cross-Section Width : 35mm – 40mm
- Galvanising Type: Hot-dipped galvanised for outdoor corrosion resistance
- Zinc Coating Thickness: 40μm – 85μm (Z275 – Z450 standard)
- Hole Diameter :5mm – 12mm pre-punched holes at regular intervals
- Bundle Packaging: 400 pieces per bundle, multiple bundles per pallet
- Fence Compatibility: Barbed wire, plain wire, mesh panels, electric fencing
- Typical Applications: Farm fencing, livestock enclosures, security and boundary fencing
- Installation Method: Installed using manual or hydraulic post driver for firm ground anchorage
Australian Y Galvanized Picket Posts – 6ft, 7ft, and 8ft Standard Fence Posts
Australian Y galvanized picket posts are designed with a Y-shaped profile for stability and strong grip on fencing wires. Made from high-quality steel and hot-dip galvanized, they offer reliable corrosion resistance, suitable for farms, livestock enclosures, and boundary fencing.
| Specification | 150 cm / 5 ft | 180 cm / 6 ft | 210 cm / 7 ft | 240 cm / 8 ft | 270 cm / 9 ft |
|---|---|---|---|---|---|
| Approx. Weight (kg) | 1.8 – 2.0 kg | 2.0 – 2.4 kg | 2.4 – 2.8 kg | 2.8 – 3.5 kg | 3.5 – 4.0 kg |
| Y-Profile Width (mm) | 60 mm | 60 mm | 65 mm | 65 – 70 mm | 70 mm |
| Wing Depth (mm) | 30 mm | 30 mm | 35 mm | 35 – 40 mm | 40 mm |
| Hole Spacing (cm) | 7.5 – 10 cm | 7.5 – 10 cm | 7.5 – 10 cm | 7.5 – 10 cm | 7.5 – 10 cm |
| Bundle Packaging | 10, 50, 200 pcs | 10, 50, 200 pcs | 10, 50, 200 pcs | 10, 50, 200 pcs | 10, 50, 200 pcs |
| Zinc Coating Thickness | 40 – 85 μm | 40 – 85 μm | 40 – 85 μm | 40 – 85 μm | 40 – 85 μm |
| Steel Grade | Q235 / 250 MPa | Q235 / 250 MPa | Q235 / 250 MPa | Q235 / 250 MPa | Q235 / 250 MPa |
Material: Steel, coated for extra resistance to harsh weather
Coating: Green powder coating for improved longevity

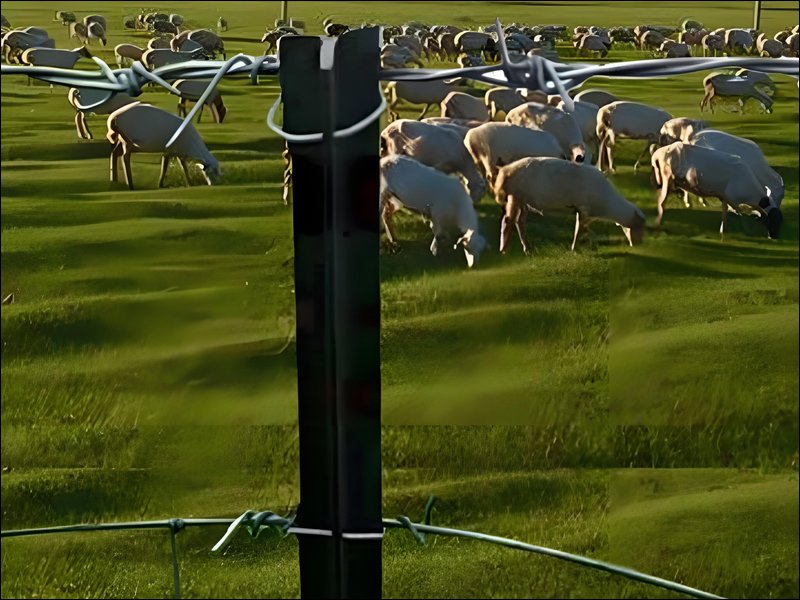

Wire Compatibility: Designed to support barbed wire or similar fencing materials
Dimensions: Available in standard heights, with customizable lengths
Applications: Y fence posts with barbed wire, are often used for farming, ranching, property enclosures,livestock movement.

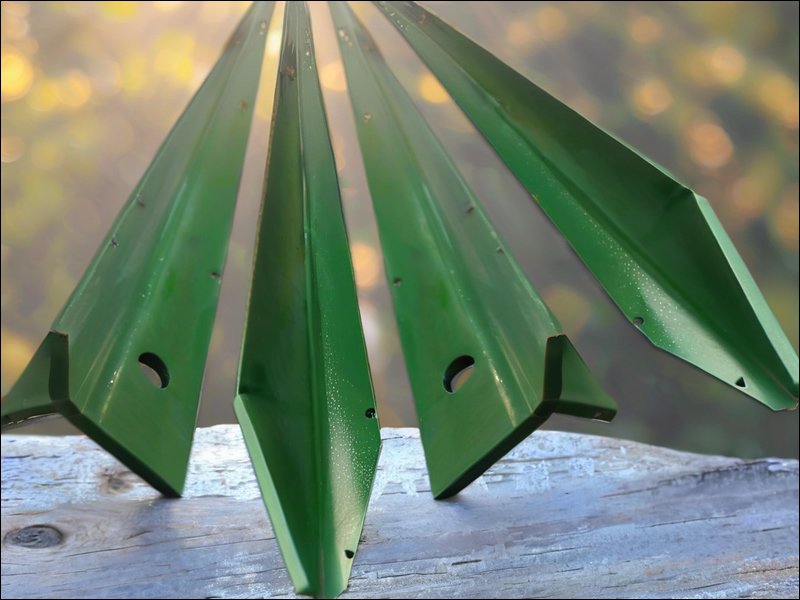

- Material: Galvanized steel
- Coating: Green powder-coated finish for additional UV protection
- Design: Unique Y-shaped profile to ensure optimal fence strength
- Height: Typically available in 1800mm, 2000mm, and custom sizes
- Material: High-strength steel
- Coating: Durable green powder coating for corrosion resistance
- Dimensions: Standard 1800mm height, with customizable lengths
- Shape: Y-shaped profile for enhanced support and load distribution

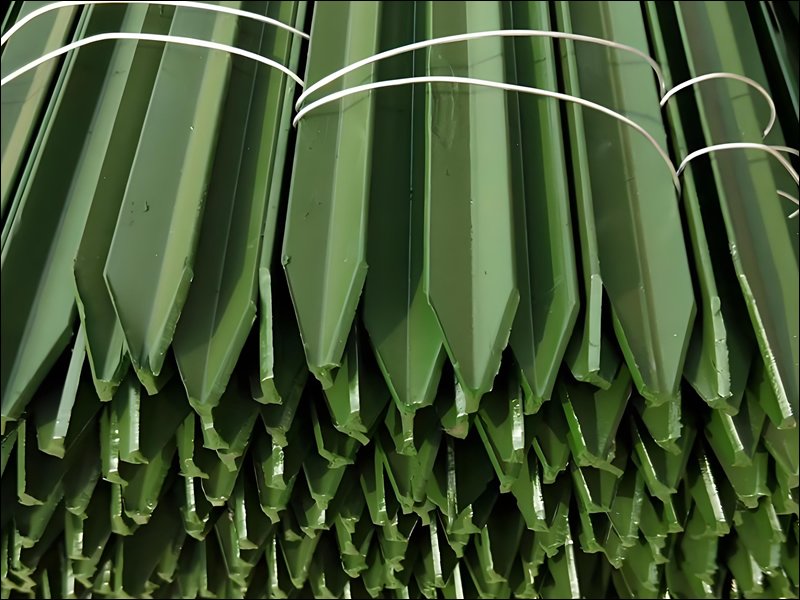

- Method: Posts are securely bundled and strapped to avoid damage during transit
- Quantity: Available in bulk for large-scale fencing projects
- Size: Bundles typically contain 50-100 posts per pack, with options for larger quantities
- Advantages: The bundling ensures that the posts are delivered intact and ready for immediate installation.
